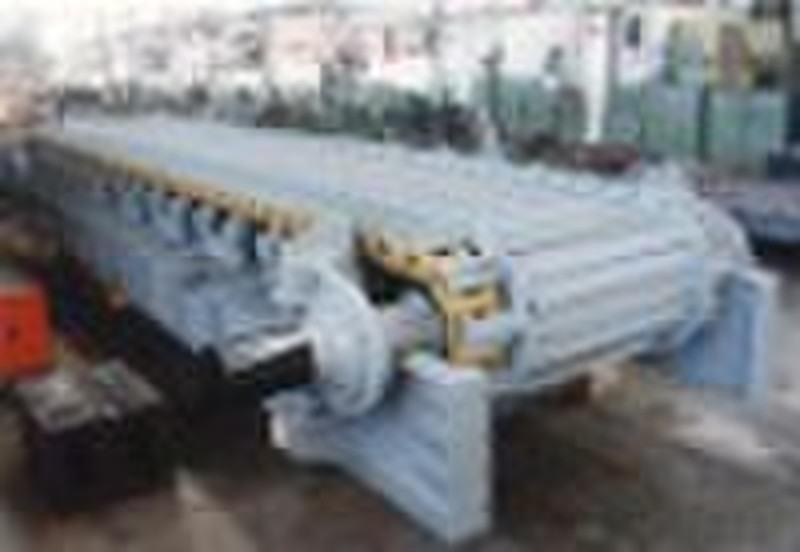

apron feeder

Outline: Our company produces light, medium and heavyapron feeders which are continuously conveying machines adopted extensively by mine, building materials and coal industries. They ration or convey all kinds of loose or sticky materials from storage bins or material-transferring hopper to crusher or other conveying equipments continuously and evenly. The conveying route is a horizontal or oblique straight line. The maximum safe inclined angle is 25°. The loading board includes three types: scale plate suitable for loose materials, arc plate for sticky materials and flat plate for materials with the lumpiness of above 1 meter. Technical parameters parameters type width of trough(mm)center distance of chain wheels(mm)material lumpiness(mm)accumulating density(t/m³)material thickness(mm)conveying speedV(m/s)capacity Q(t/h)chain type(track chain)BZOK1250-8125080006001.5-1.87000.015-0.1280-400X216BZOK1250-1010000BZOK1250-1212000BZOK1250-1515000BZOK1500-6150060007001.5-1.88500.015-0.12100-500X216BZOK1500-88000BZOK1500-1010000BZOK1500-1212000BZOK1500-1515000BZOK1600-6160060008001.5-1.810000.015-0.12150-600X216BZOK1600-88000BZOK1600-1010000BZOK1600-1212000BZOK1800-6180060009001.5-1.811000.025-0.12200-800X216BZOK1800-88000BZOK1800-1010000BZOK1800-1212000BZOK2000-62000600010001.6-212000.025-0.12250-1000X216F1BZOK2000-88000BZOK2000-1010000BZOK2200-62200600012001.6-2.213000.025-0.12300-1200X228BZOK2200-88000BZOK2200-1010000BZOK2400-62400600014001.6-2.214000.025-0.12400-1500X228BZOK2400-88000BZOK2400-1010000BZOK2500-62500600015001.6-2.415000.025-0.12450-1800X228BZOK2500-88000BZOK2500-1010000BZOK2800-82800800017501.8-2.416000.025-0.12500-2000X228BZOK2800-1010000BZOK2800-1212000
